The RoughCam IPQ1656 is a powerful IP-megapixel camera (4 megapixels) for use in industrial areas – not only offering superb QuadHD resolution (2688 x 1512 at 60/50 fps) but also a powerful remote zoom and focus lens. The RoughCam IPQ1656 combines excellent image and video performance with outstanding hardware and processing capabilities. It is equipped with a Deep Learning Processor Unit (DLPU). Thanks to Artificial Intelligence (AI) with Deep Learning prefect for analytic applications. It can differ between different objects, for example a bus, a car, a person. Furthermore it supports 3rd-party AI applications. Besides a variety of intelligent analytic features help you to make smart decisions it delivers unparalleled light sensitivity (0.05 lx). The RoughCam series is made to work under the harshest conditions in the world.
Features.
- Extremely robust and resistant
- Deep Learning Processing Unit (DLPU) for Artificial Intelligence (AI) Applications
- Object Analytics
- AI-based Dynamic Privacy Shield
- Arctic-Temperature-Control (-60°C)
- Single-Cable-Solution (PoE / 24VDC)
- Protection Level of IP68 (IEC 60529)
- High Resolution: 4MP (QuadHD with up to 60fps)
- Unparalleled Light Sensitivity with 1/1.8'' Sensor
- Lightfinder 2.0 and Forensic WDR Technologies
- Easy VMS Integration
- Electronic Image Stabilization (EIS)
- Extensive Accessories
Extremely robust IP-camera for use in the harshest conditions of the world
Thanks to the high-quality and precisely processed materials, the RoughCam series is extremely robust, impact-resistant, resistant to a variety of liquids and gases and can withstand some adverse environmental conditions.
Media resistance and seals
Due to the high-quality materials used for the T10 Series, it meets the requirements of a comprehensive media resistance list! The particularly designed GYLON (PTFE) flat sealing does not only ensure the housing to be watertight (IP68) but also supports the resistance towards several chemicals. The extremely robust and scratch-proof as well as high-impact resistant borosilicate glass fits perfectly into the high-quality materials of the housing body.
Temperatures
The allowed ambient temperature range of the RoughCam IPQ1656 starts at -60°C and goes up to +60°C. This wide temperature range is possible thanks to our ptc-ceramic heaters. They ensure that the camera remains ice-free even at -60°C while it doesn't get too hot at higher ambient temperatures. In order to ensure safe use even at high ambient temperatures we equip the cameras with high power and high temperature resistant primary cells to float charging of the battery.
Artificial intelligence meets camera
Cameras have long ceased to be used for purely imaging surveillance. Due to the ever-improving processors and the associated performance of the cameras, the decentralized task of image evaluation can now also be carried out directly on the camera - so-called on-edge solutions. The main advantage of this camera-based evaluation is the lower use of bandwidth, since the actual analysis is carried out on the camera from the raw data and only metadata has to be passed on. This means that events can be reacted to almost in real time.For more information about this topic, see our technical report on Artificial Intelligence.
Deep- und Machine Learning make it possible
Motion detection has long made it possible to detect people or vehicles in certain areas. However, the error rate, e.g. due to shadows or objects, was relatively high and the detected movement could not be classified. With the new technology of the RoughCam IPQ1656 (intelligent algorithms and deep learning processor unit) it is possible to differentiate between a person and a car in the picture. The object analysis even goes so far that a distinction can be made between cars, trucks and motorcycles. Object analysis is interesting, for example, where the entry of a person into a danger area in which a machine is moving is to be recognized and reported.
Another edge-based analysis application: Live Privacy Shield
Dynamic privacy masking is possible with this new technology. Moving people or objects can be dynamically masked in live or recorded video in real time. Scenes can now be masked based on movement at 10 frames per second. This ensures that privacy is protected.
Reduced installation costs & Power over Ethernet (PoE)

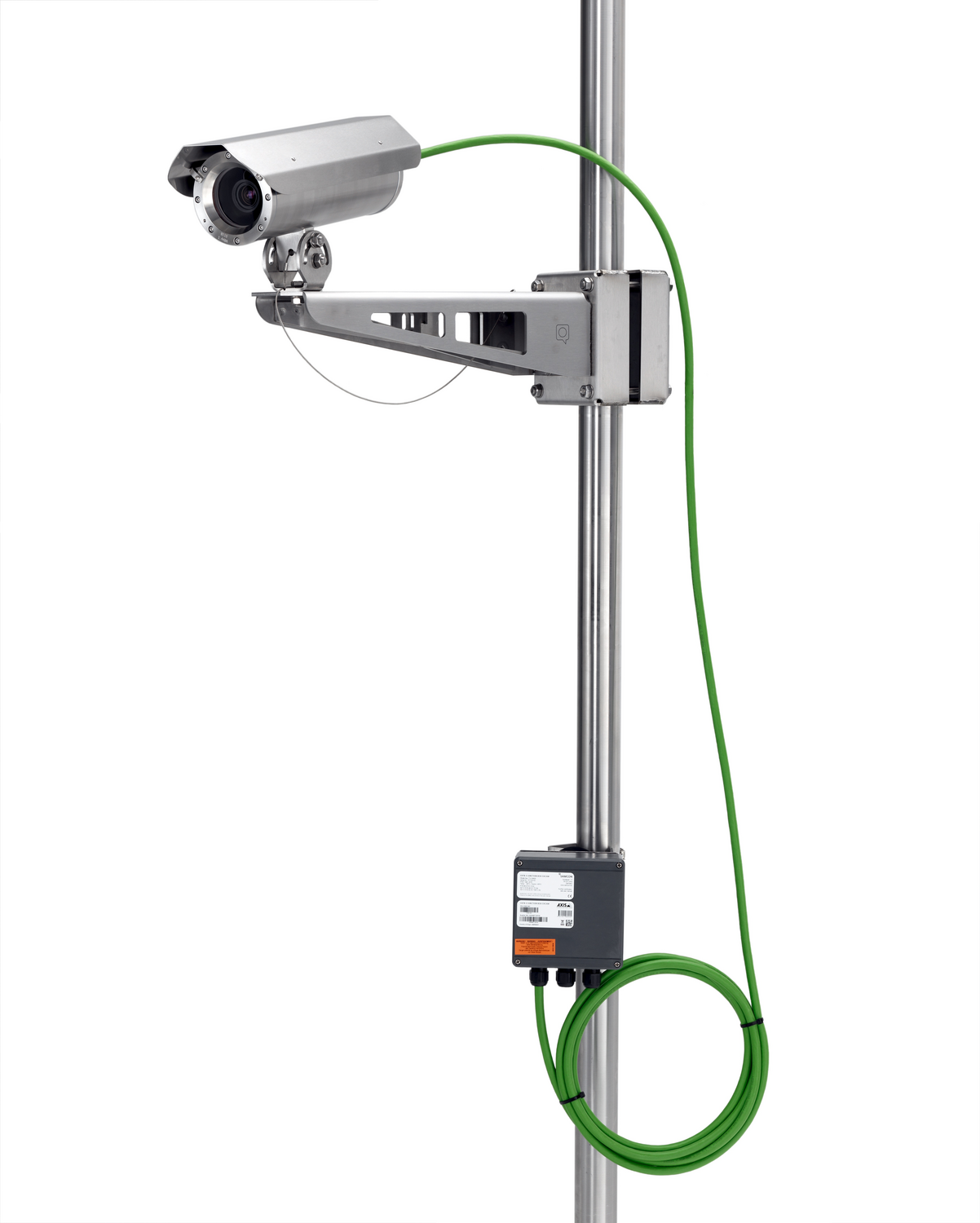

A particularity of the RoughCam IPQ1656 is that data as well as power is transmitted via a single cable which means that for the installation, only a PoE-Switch or a PoE-Midspan is required.
Small housing - great resolution (HD)

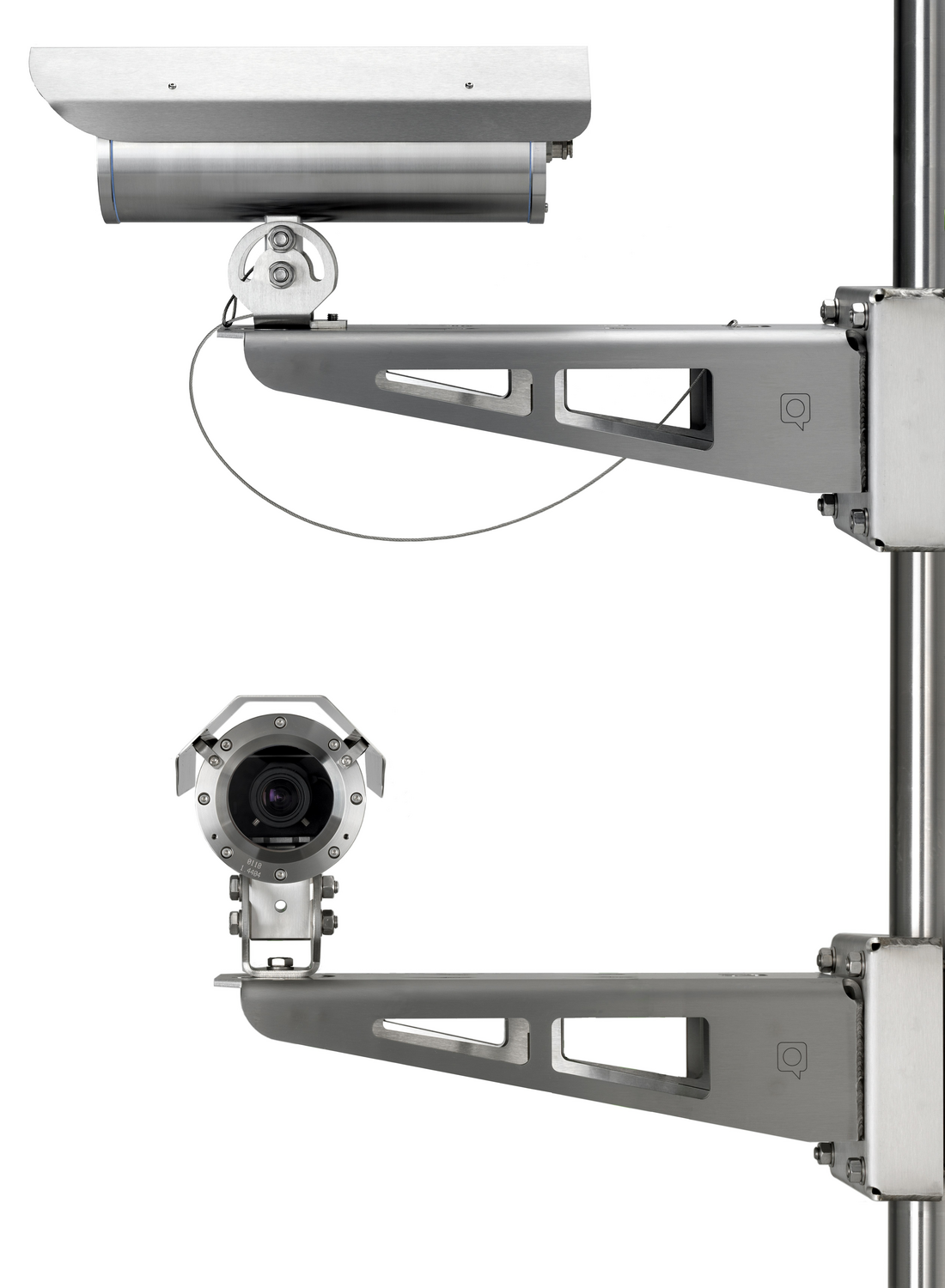

With its length of just 310 mm and a diameter of only 113 mm, the RoughCam IPQ1656 is relatively small for all its functions. With progressive scan, the RoughCam IPQ1656 is capable of making high-resolution images of moving objects with up to 60 frames per second: Without motion blur! The RoughCam IPQ1656 delivers sharp images in QuadHD resolution (4MP).
Remote Zoom & Remote Focus
The RoughCam IPQ1656 provides a lens with remote Zoom and remote focus. The greatest challenge of cameras with varifocal lens is opening and closing the housing to adjust the angle of view. This is not necessary for our RoughCam! All adjustments can be made electronically. The housing has not to be opened! This reduces the installation efforts to a minimum. The pixel count of the camera mechanic can ensure that the pixel resolution of an object fulfills regulatory or customer requirements.
Unparalleled light sensitivity
The RoughCam IPQ1656 delivers razor sharp images in any light. With 4 MP resolution at up to 60 fps, 1/1.8" sensor and Lightfinder, this camera captures more light than ever and enables outstanding image usability even in poor light. The camera also delivers Forensic WDR, to ensures perfect balance in scenes with strong variations in light, and Electronic Image Stabilization (EIS).
Day / Night function
The RoughCam IPQ1656 is equipped with a day / night function making it particularly suitable for use in outdoor or indoor areas with poor lighting. When the brightness drops below a certain value, the camera automatically switches to night mode to produce high-quality black and white images using near-infrared light. Near-infrared light, with a wavelength between 780 and about 1000 nanometers, cannot be perceived by the human eye, however, the image sensor of the RoughCam IPQ1656 can recognize and use this light.
High image quality
For video surveillance applications, a high image quality is essential in order to be able to clearly identify involved persons or objects. With its progressive scan and megapixel technology, the RoughCam IPQ1656 offers a much better image quality as well as a higher resolution than any analog CCTV camera. In addition, it is much easier to ensure the image quality in an IP network than in an analog system.
Easy, safe and sustainable integration
Network video products based on open standards can be integrated simply in combination with video management and application software.
Zubehör
Sonstiges Zubehör
Scharnierbefestigung,
Thermoisolator, Twin-Adapter,
SuperClamp-Montageadapter
