The ExCam IPQ1785 is a powerful IP-megapixel camera (2 megapixels) for use in hazardous areas – not only offering superb HDTV resolution (1920 x 1080) but also a powerful motor zoom and auto focus lens (32x optical zoom). The ExCam IPQ1785-W (Wash & Wipe) is equipped with a wiper and prepared for common use with our washing fluid supply unit cam.Cleaner. The ExCam series is certified according to European regulations (ATEX) as well as international ones (IECEx). These and more available certificates can be found in the download area.


  • Broad Certification Landscape for Hazardous Areas (ATEX, IECEx & EAC-Ex and more)
  • Powerful Wiper Solution with Torque Control
  • Arctic-Temperature-Control (-60°C)
  • Single-Cable-Solution (PoE / 24VDC)
  • Protection Level of IP66/68 (IEC 60529)
  • High Resolution: 1920x1080 (HDTV 1080p)
  • Powerful Motor-Zoom-Autofocus-Lens (32x Optical)
  • Lightfinder and WDR Technologies
  • Easy VMS Integration

Explosion-proof IP-camera with ATEX-, IECEx- and EAC-Ex-certification

Besides the European regulations (ATEX), the ExCam series is also certified according to international regulations (IECEx) as well as the Russian custom-union (EAC-Ex). The housings’ certification comprises ATEX group I (mining) with a low risk of mechanical threat and ATEX group II (Gas and Dust) for zone 1, 2 as well as 21 and 22 including the explosion groups IIC / IIIC with a high risk of mechanical threat. In addition, certification can be extended at any time to cover different markets. For South Africa, for example, this has already been achieved with the MASC (Mining and Surface Certification).

During the ExCam IPQ1785’s development stage the focus was clearly laid on security aspects as well as mechanical precision and high-quality stainless steels. In addition, the modular design of the housing components prior to the camera’s development allows a free combination of the individual housing components such as different flanges in combination with the housing body - without any limitations regarding explosion protection.

Regarding the technical parameters we have pushed the limits of what is feasible: In the media resistance and the ambient temperature we set standards with the ExCam series.

Media resistance and seals

Due to the high-quality materials used for the T07 Series, it meets the requirements of a comprehensive media resistance list! The particularly designed GYLON (PTFE) flat sealing does not only ensure the housing to be watertight (IP68) but also supports the resistance towards several chemicals. The extremely robust and scratch-proof as well as high-impact resistant borosilicate glass fits perfectly into the high-quality materials of the housing body.


The allowed ambient temperature range of the ExCam IPQ1785 starts at -60°C and goes up to +60°C. This wide temperature range is possible thanks to our double ptc-ceramic heaters. They ensure that the camera remains ice-free even at -60°C while it doesn't get too hot at higher ambient temperatures. In order to ensure safe use even at very high ambient temperatures we equip the cameras with high power and high temperature resistant primary cells to float charging of the battery.

Reduced installation costs & Power over Ethernet (PoE)

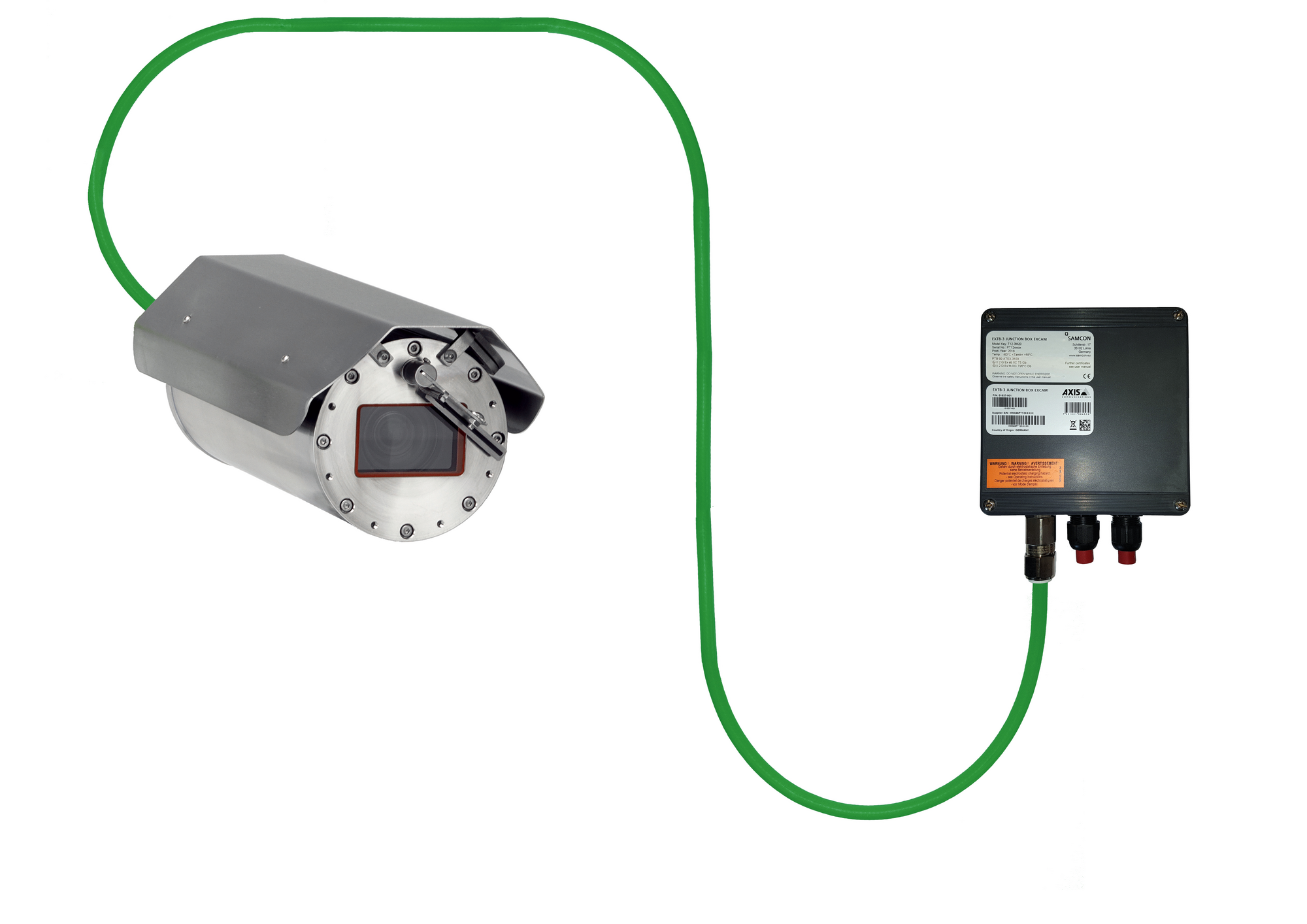

A particularity of the ExCam IPQ1785 is that data as well as power is transmitted via a single cable which means that for the installation within the safe area, only a PoE-Switch or a PoE-Midspan is required.

Small housing - great resolution (HD)

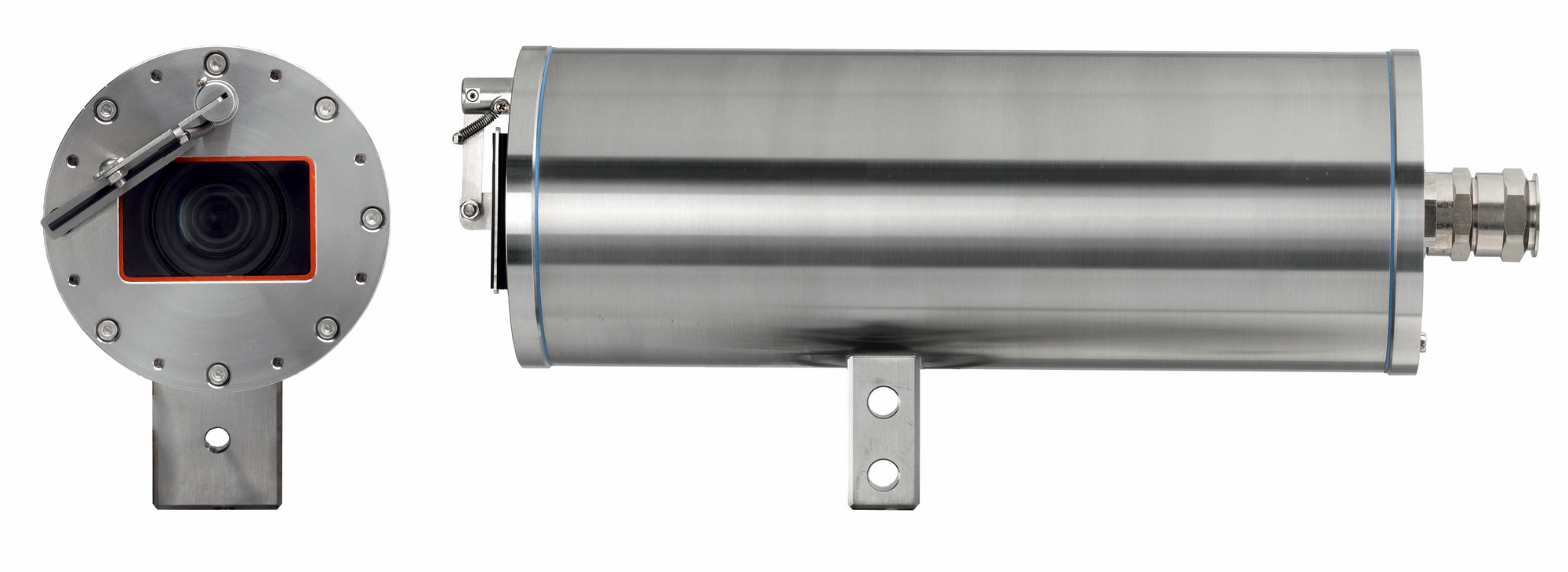

With its length of just 310 mm and a diameter of only 113 mm, the ExCam IPQ1785 is smaller than some camera models for safe areas – but with more powerful functions. With progressive scan, the ExCam IPQ1785 is capable of making high-resolution images of moving objects with up to 30 frames per second: Without motion blur! The ExCam IPQ1785 delivers sharp images in HD resolution.

Motor Zoom & Auto Focus, Auto Iris

The ExCam IPQ1785 provides a lens with 32x optical zoom (12x digital), auto focus and auto iris. This reduces the installation efforts to a minimum which is especially important in hazardous areas. The pixel count of the camera mechanic can ensure that the pixel resolution of an object fulfills regulatory or customer requirements.

Day / Night function

The ExCam IPQ1785 is equipped with a day / night function making it particularly suitable for use in outdoor or indoor areas with poor lighting. When the brightness drops below a certain value, the camera automatically switches to night mode to produce high-quality black and white images using near-infrared light. Near-infrared light, with a wavelength between 780 and about 1000 nanometers, cannot be perceived by the human eye, however, the image sensor of the ExCam IPQ1785 can recognize and use this light.

Wiper for clear sight

The ExCam IPQ1785 can be equipped with a wiper for being able to clean the optic of the camera housing if necessary. The wiper`s mechanic is constructed that in case of a mechanical disturbance the torque controle is active. This torque control ensures that the wiper will be lead back into the end position. In combination with the optical optimized and thermally temperd borosilicat-rectangle-glass the wiper-optic-combination is the most compact constructive solution for the pressurized encapsulation. For connection of up to 4 cameras to an IP-controlled washing fluid supply unit we recommend smart.Cleaner. The ExCam IPQ1785-W (Wash & Wipe) is not only equipped with a wiper but also prepared for common use with our washing fluid supply unit cam.Cleaner.

Click at the picture to view and control our camera live! If you want to test further camera functions log in as a user (user name: demo/password: demo).

If you want to see how the camera behaves at greater object distances and in daylight, click on the following image to see and control our outdoor camera live.
If you are missing something, please contact our support!

Local record stores & Edge Storage

The ExCam IPQ1785 has a microSD / microSDHC  slot for a memory card of up to 64 GB (card not included) so that each camera disposes of an integrated recording device. In addition, the camera supports the active recording of streams into a central network directory (network storage or file server). The ExCam IPQ1785 stores data independently without the control of external computers.

Benefits of digital network video surveillance

An IP network video surveillance system offers numerous advantages and special features:
• Remote access
• High image quality
• Event management and intelligent video
• Easy, safe and sustainable integration
• Scalability and flexibility
• Cost efficiency

Remote access

Network cameras and video encoders can be accessed and configured remotely so that multiple authorized users can watch live video images at any time and from any networked location worldwide.  This is an advantage in case you want to grant users of other companies, e.g. of a security company, access to the video images as well.

High image quality

For video surveillance applications, a high image quality is essential in order to be able to clearly identify involved persons or objects. With its progressive scan and megapixel technology, the ExCam IPQ1785 offers a much better image quality as well as a higher resolution than any analog CCTV camera. In addition, it is much easier to ensure the image quality in an IP network than in an analog system. For the current analog systems using a DVR as a recording device, numerous data conversions from analog to digital and vice versa take place: First the camera converts the analog signals into digital data, afterwards they are re-converted analog signals to allow transmission. Subsequently, the analog signals are re-digitalized again for recording. Each conversion procedure as well as the cable’s signal attenuation influences the image quality. The greater the transmission distance of these analog signals is, the weaker the signal becomes. In a fully digital IP-Surveillance system, images from a network camera are digitized only once and they then remain in the digital format. As a result, not only unnecessary conversions are avoided but also image degradation due to long transmission distances in a network will not occur. In addition, digital images can be stored easily and retrieve much easier than it is possible with analog videotapes.

Event management and intelligent video

Often, an excessive amount of video data is recorded and there is not enough time available to analyze it properly. Advanced network cameras and video encoders with integrated intelligence or analysis functions resolve this problem by reducing irrelevant video recordings as well as by initiating pre-programmed actions. Such functions are not available for analog systems. The ExCam IPQ1785 offers integrated functions such as video motion detection, active tampering alarm, and alarm and event management functions. Using these features makes the network cameras and video encoders capable of continuously analyzing the input data in order to detect events and to respond automatically – e.g. by starting a video recording and sending alarm notifications. Event management functions can be set via the user interface or the network video software. Users can define the alarms or events by the used trigger and specify the time period in which the event has to be active. Furthermore, the actions can be configured (e.g. recording of one or more locations, locally and / or at remote locations, activation of external devices such as sirens, lights and door opener, sending notifications to users).

Easy, safe and sustainable integration

Network video products based on open standards can be integrated simply in combination with video management and application software.

Scalability and flexibility

A network video system can grow with the needs of its users. For IP-based systems, the same wired or wireless network can be used for data exchange by many network cameras and video encoders as well as other types of applications. Therefore,  a variable number of network video products can be added to the system without the need for extensive or expensive changes to the network infrastructure. In an analog system this is not possible. In an analog video system a particularly provided coaxial cable must be wired directly from each camera to a display / recording station. In comparison, network video products can virtually be placed at any site and incorporated into any network. They can be open or strictly protected.

Cost Efficiency

An IP-Surveillance system typically has a lower total operating cost than a conventional analog CCTV system. In most cases, an IP network infrastructure does already exist so that a network video application can be easily integrated into the existing infrastructure.  Wired or wireless networking solutions are also much cheaper than coaxial and fiber optic cable for analog CCTV systems. The administrative as well as equipment costs are lower as back-end storage applications that can be purchased off the shelve basically everywhere in the world.
